3mm Indoor LED Cabinet SMD2121 1/16 Scan Constant Current LED Advertising Screen
Decription:
P3 unit board adopts mainly two LED encapsulation. One kind is SMD0805, another kind is SMD2121. For the price, SMD0805 is cheaper than SMD2121. For the performance, SMD 2121 is better than SMD0805. Coincide with the development trend of the market, the price differences between them become smaller and smaller. Hence the module with SMD2121’s cost-effective become higher and higher.
Features:
1. Screen brightness can be adjustable via LED Studio.
2. Screen working humidity: 10% ~ 95%.
3. Screen working temperature: -20ºc ~ +60ºc.
4. Energy saving design makes sure low power consumption.
Specification:
| Pixel Pitch | 3mm |
| Pixel Density | 111,111dots/sqm |
| Tube Chip Color | Full Color |
| Color Configuration | 1R1G1B 3in1 |
| LED Encapsulation | SMD2121 |
| Module Size | 192mm x 192mm |
| Module Resolution | 32dots x 32dots |
| Cabinet Size | 576mm x 576mm |
| Cabinet Resolution | 192dots x 192dots |
| Drive Duty | 1/16 Constant Current |
| Brightness | ≥1500nits |
| Viewing Distance | 3m - 30m |
| Viewing Angle | H: 120°; V:120° |
| Refresh Rate | 2000HZ |
| Frame Rate | 120frame/sec |
| Grey Grade | 256levels of Each Color |
| Color Grade | 16.7M |
| Power Input | 5V-20A, AC110V/ 220V/ 50HZ |
| Max Power Consumption | 360W/sqm |
| Ave. Power Consumption | 180W/sqm |
| Storage Temperature | -40℃~+80℃ |
| Working Temperature | -20℃~+60℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Cabinet Weight | 9kg |
| Operating Humidity | 10%~95% |
| Control System | Synchronous, Asynchronous |
| Operating System | Win 98, Win2000, XP, 07.etc |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
| Certificate | CE, LVD, RoHS |
Application:
Music Concert, movie theaters, fitness halls, country clubs, clubs, massage rooms, bars,
cafes, Internet bars, beauty shops, golf course.

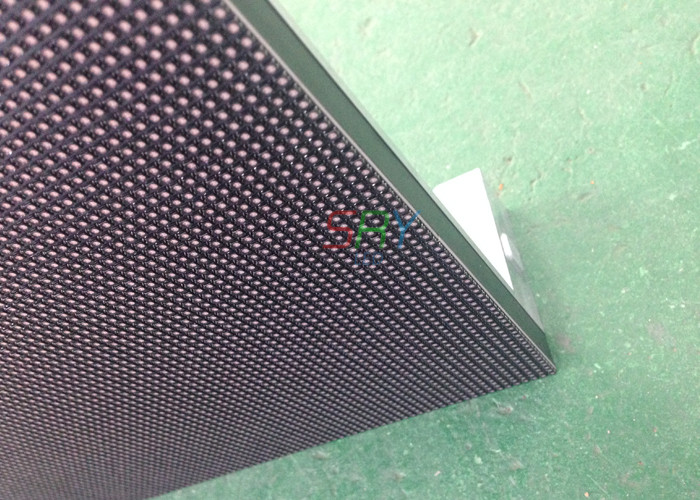

Cabinet Pictures:
Competitive Advantages:
1. No noise, low radiation
2. Super light design, seamless splice design
3. Fast and easy installation without tool
4. Energy-saving, environmental and low consumption design
