200W 40A LED Display Accessories , Meanwell LED Display Power Supply

1, 200W Single Output Certified Power SupplyHigh reliability

2, Built-in EMI filter

3, Low output ripple&noise

4, Protections:Over load/Short circuit

5, Approvals:CE CCC

6, 2 years warranty

Specification

1, Case:808 Size ------------------199×110×50mm

2, AC input voltage range -------------------------- 176-264VAC

3, Input frequency --------------------------------- 47-63Hz

4, AC inrush current -------------------------------- Cold start,60A/230VAC

5, DC adjustment range ----------------------------- ±10% rated output voltage

6, Line regulation(full load)------------------------ ≤0.5%

7, Output over load protection ------- 110%-150% shut off, AC recycle to re-start

8, Rise,hold up time -------------------- 50mS,20mS at full load(typical)

9, Withstand voltage ------- I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min

10, Working temperature----- -10~+40℃@100%,+60℃@60% load

11, Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)

12, Safety standards------Design refer to GB4943,UL60950-1,EN60950-1

13, EMC standards------- Design refer to GB9254,EN55022 class A

14, Cooling method---------------------Free air cooling convection

15, Product modelDC output Load regular.R&NEfficiencyA-200-55V,40A2%100mV78%A-200-1212V,16.7A1%120mV80%A-200-2424V,8.3A1%200mV83%

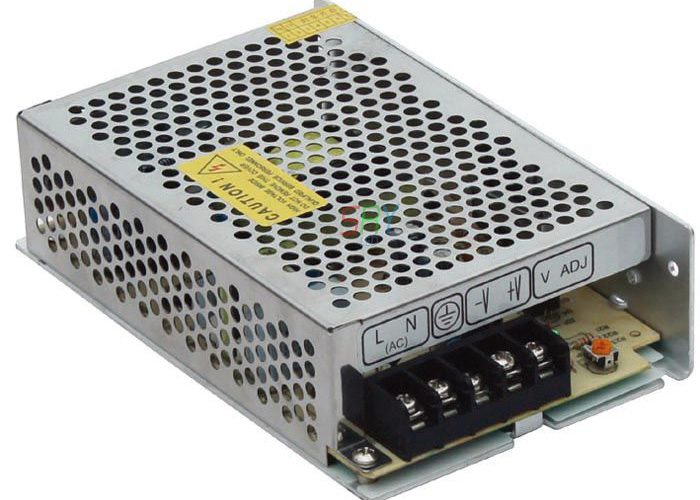

Product Images
